Highlight:
flanged expansion joint
, flanged expansion bellows
, Pn10 flanged joint
Name: |
Epdm Bellows Double Sphere Expansion Joint |
Body Material: |
EPDM/NBR/NR/FKM Etc. |
Material Of Flange: |
Carbon Steel , Stainless Steel 304 316，etc. |
Application: |
Air,water,sewage,acid,oil,sandstone,etc. |
Pressure: |
6-40bars(PN6-PN40) |
Standard Of Flange: |
DIN,ANSI,JIS ,etc. |
Use: |
PETROCHEMICAL INDUSTRY,PAPER INDUSTRY,WATER SUPPLY AND DRAINAGE INDUSTRY,MINING INDUSTRY,METALLURGICAL MANUFACTURING,ENVIRONMENTAL PROTECTION INDUSTRY |
Flange Color: |
Customizable |

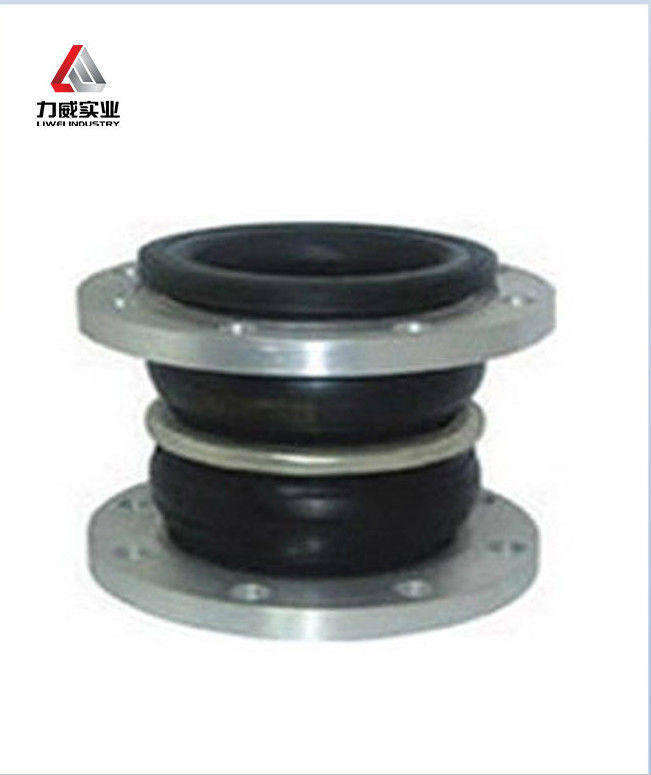

Flanged Expansion Joint Bellows Pn10 Stainless Steel Flange
Customizable Double Sphere Flexible Rubber Joint Pn10 Stainless Steel Flange
Product Description:
The Double Sphere Flexible Rubber Joint is an essential component in a wide range of fluid management systems, providing exceptional performance in the absorption of vibrations, expansion, and contraction within pipes. This innovative joint is designed to accommodate the complex needs of various applications, including air, water, sewage, acid, oil, and more. The versatility and durability of the double ball rubber expansion joint make it an indispensable part of modern industrial, commercial, and municipal infrastructures.
Applications:
Technical Parameters:
Diameter
DN |
Length
mm |
Axis displacement |
Radial
displacement |
Deflexion
displacement |
| TYPE 1 |
TYPE 2 |
| mm |
inch |
Extension |
Compression |
Extension |
Comgression |
TYPE 1 |
TYPE 2 |
TYPE1 |
TYPF 2 |
| 32 |
11/4" |
165 |
30 |
50 |
|
|
45 |
|
±7.5° |
|
| 40 |
11/2” |
165 |
30 |
50 |
|
|
45 |
|
±7.5° |
|
| 50 |
2" |
165 |
30 |
50 |
|
|
45 |
|
±7.5° |
|
| 65 |
21/2” |
175 |
30 |
50 |
|
|
45 |
|
±7.5° |
|
| 80 |
3" |
175 |
30 |
50 |
|
|
45 |
|
±7.5° |
|
| 100 |
4" |
225 |
35 |
50 |
|
|
45 |
|
±7.5° |
|
| 125 |
5" |
225 |
35 |
50 |
|
|
45 |
|
±7.5° |
|
| 150 |
6" |
225 |
35 |
50 |
|
|
45 |
|
±7.5° |
|
| 200 |
8" |
325 |
35 |
60 |
|
|
|
|
|
|
| 250 |
10" |
325 |
35 |
60 |
|
|
|
|
|
|
| 300 |
12" |
325 |
35 |
60 |
|
|
|
|
|
|
| 350 |
14" |
325 |
35 |
60 |
|
|
|
|
|
|
| 400 |
16" |
400 |
40 |
60 |
|
|
|
|
|
|
| 450 |
18" |
400 |
|
|
65 |
70 |
|
70 |
|
±12° |
| 500 |
20" |
400 |
|
|
65 |
70 |
|
70 |
|
±12° |
| 600 |
24" |
400 |
|
|
70 |
75 |
|
75 |
|
±12° |
| 700 |
28" |
400 |
|
|
70 |
75 |
|
75 |
|
±12° |
| 800 |
32" |
450 |
|
|
70 |
75 |
|
75 |
|
±12° |
| 900 |
36" |
450 |
|
|
70 |
75 |
|
75 |
|
±12° |
| 1000 |
40" |
450 |
|
|
75 |
80 |
|
70 |
|
±12° |
| 1200 |
48" |
500 |
|
|
75 |
80 |
|
70 |
|
±10° |
| 1400 |
56" |
500 |
|
|
75 |
80 |
|
70 |
|
±10° |
| 1600 |
64" |
500 |
|
|
75 |
80 |
|
70 |
|
±10° |
| 1800 |
72" |
500 |
|
|
80 |
85 |
|
65 |
|
±10° |
| 2000 |
80" |
550 |
|
|
80 |
85 |
|
65 |
|
±10° |
| 2200 |
88" |
550 |
|
|
80 |
85 |
|
65 |
|
±10° |
| 2400 |
96" |
550 |
|
|
80 |
85 |
|
65 |
|
±10° |
| 2600 |
104" |
550 |
|
|
80 |
85 |
|
65 |
|
±10° |
| 2800 |
112" |
550 |
|
|
80 |
85 |
|
65 |
|
±10° |
| 3000 |
120" |
550 |
|
|
80 |
85 |
|
65 |
|
±10 |
| • Special size and length can be customized for you. |
Advantages:
1.Established for 36 years, our technical personnel have rich experience and expertise in the industry.
2.Our rubber joints are the drafting unit of national standards, and the main process is molding.
3.High demand production, high quality product assurance.
4.We have a professional rubber mixing center.Real materials can be seen.
5.Our company participated in the drafting of the national standard GB/T26121-2010 of "Flexible Rubber Joints".
6.Professional technical personnel, strong technical force, good production equipment.
7.Free samples are provided.
FAQ:
Q1:Could we choose different material?
A1:Yes, the material can be chose according to your requirements.
Q2:And what's your packing methods?
A2:Wrap the product with plastic film first, then put it into cartons and then pack it into wooden cases.
Q3: What is the model number range for the liwei Double sphere flexible rubber joint?
A3: The model number range for the liwei Double sphere flexible rubber joint is from DN15 to DN4000, catering to a wide range of piping requirements.
Q4: How can I purchase the liwei Double sphere flexible rubber joint and what is the minimum order quantity?
A4: You can purchase the liwei Double sphere flexible rubber joint by contacting the supplier directly, and the minimum order quantity is 1 set.
Q5:And what's your packing methods?
A5:Wrap the product with plastic film first, then put it into cartons and then pack it into wooden cases.
