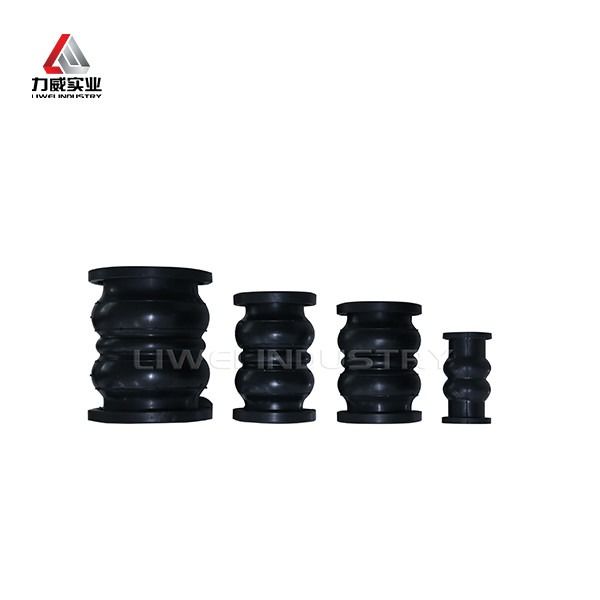

Double Sphere Rubber Expansion Joint With Seal Full Face Hand Wrap Limited Tie Rod
Product Description:
Flexible rubber bellow joint consists of outer rubber, inner rubber, framework layer, and reinforcing bar and flange. Relying on rubber’s special performances as long range elasticity, air impermeability, medium, climate and radiation resistance, rubber expansion couplings can reduce the vibration and noise of pipeline, and can be caused by the temperature change of heat bilges cold shrink compensation effect.
Customization:
Structure of product:Inner and outer rubber,nylon cord fabric,steel wire and flange
Rubber raw material:NR,NBR,SBR,EPDM,FKM,etc.(According to your needs)
Flange material:SS304,SS316,carbon steel, ductile iron,etc(According to your needs)
Size:DN15-DN4000
Length:customizable
Flange color:customizable
Standard of flange:DIN, BS, ANSI, JIS,ISO,etc.
Technical Parameters:
|
Diameter
DN
|
Length
mm |
Axis displacement |
Radial
displacement |
Deflexion
displacement |
| TYPE 1 |
TYPE 2 |
| mm |
inch |
Extension |
Compression |
Extension |
Comgression |
TYPE 1 |
TYPE 2 |
TYPE1 |
TYPF 2 |
| 32 |
11/4" |
165 |
30 |
50 |
|
|
45 |
|
±7.5° |
|
| 40 |
11/2” |
165 |
30 |
50 |
|
|
45 |
|
±7.5° |
|
| 50 |
2" |
165 |
30 |
50 |
|
|
45 |
|
±7.5° |
|
| 65 |
21/2” |
175 |
30 |
50 |
|
|
45 |
|
±7.5° |
|
| 80 |
3" |
175 |
30 |
50 |
|
|
45 |
|
±7.5° |
|
| 100 |
4" |
225 |
35 |
50 |
|
|
45 |
|
±7.5° |
|
| 125 |
5" |
225 |
35 |
50 |
|
|
45 |
|
±7.5° |
|
| 150 |
6" |
225 |
35 |
50 |
|
|
45 |
|
±7.5° |
|
| 200 |
8" |
325 |
35 |
60 |
|
|
|
|
|
|
| 250 |
10" |
325 |
35 |
60 |
|
|
|
|
|
|
| 300 |
12" |
325 |
35 |
60 |
|
|
|
|
|
|
| 350 |
14" |
325 |
35 |
60 |
|
|
|
|
|
|
| 400 |
16" |
400 |
40 |
60 |
|
|
|
|
|
|
| 450 |
18" |
400 |
|
|
65 |
70 |
|
70 |
|
±12° |
| 500 |
20" |
400 |
|
|
65 |
70 |
|
70 |
|
±12° |
| 600 |
24" |
400 |
|
|
70 |
75 |
|
75 |
|
±12° |
| 700 |
28" |
400 |
|
|
70 |
75 |
|
75 |
|
±12° |
| 800 |
32" |
450 |
|
|
70 |
75 |
|
75 |
|
±12° |
| 900 |
36" |
450 |
|
|
70 |
75 |
|
75 |
|
±12° |
| 1000 |
40" |
450 |
|
|
75 |
80 |
|
70 |
|
±12° |
| 1200 |
48" |
500 |
|
|
75 |
80 |
|
70 |
|
±10° |
| 1400 |
56" |
500 |
|
|
75 |
80 |
|
70 |
|
±10° |
| 1600 |
64" |
500 |
|
|
75 |
80 |
|
70 |
|
±10° |
| 1800 |
72" |
500 |
|
|
80 |
85 |
|
65 |
|
±10° |
| 2000 |
80" |
550 |
|
|
80 |
85 |
|
65 |
|
±10° |
| 2200 |
88" |
550 |
|
|
80 |
85 |
|
65 |
|
±10° |
| 2400 |
96" |
550 |
|
|
80 |
85 |
|
65 |
|
±10° |
| 2600 |
104" |
550 |
|
|
80 |
85 |
|
65 |
|
±10° |
| 2800 |
112" |
550 |
|
|
80 |
85 |
|
65 |
|
±10° |
| 3000 |
120" |
550 |
|
|
80 |
85 |
|
65 |
|
±10 |
| • Special size and length can be customized for you. |
Advantages:
- Established for 36 years, our technical personnel have rich experience and expertise in the industry.
- High-quality finishing flange.
- Bright and smoothsphericalappearance.
- We have a professional rubber mixing center.Real materials can be seen.
- Galvanized steel wire and Multi-layer nylon cord fabric.
- Our company participated in the drafting of the national standard GB/T26121-2010 of "Flexible Rubber Joints".
- Apply for a utility model patent flexible rubberjoint Patent number: 032418558.
FAQ:
Q1:Are you trading company or manufacturer?
A: We are professional manufacturer.
Q2: How can you guarantee the quality or any warranty?
A2: If any quality problems during use, all the products can be returned or according to consumer's requests.
Q3: Can I visit your factory before the order?
A3: Yes, welcome to our factory to check the quality.
Q4: Do you have products catalog?
A: Yes, we have. Please tell me your email or instant messager, we will send our catalog.
Q5: What are the packaging details for the liwei Double sphere flexible rubber joint?
A5: Each liwei Double sphere flexible rubber joint is packaged carefully with an inner plastic film and an outer wooden case to ensure protection during shipping. For multiple compensators packed in one case, a steel frame is used to secure them.
