Product Description:

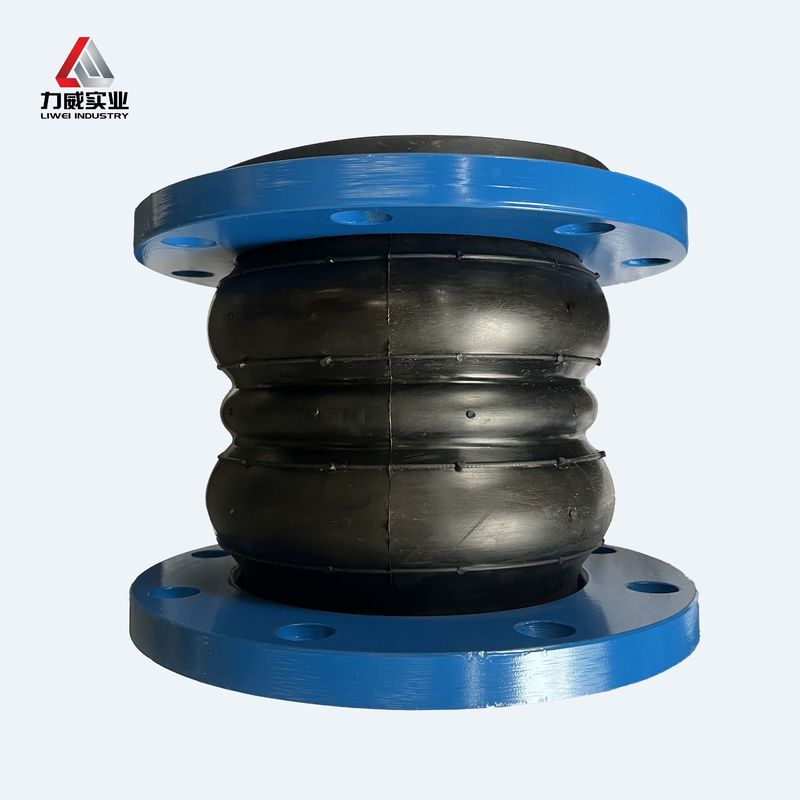

The Liwei brand proudly showcases its state-of-the-art double ball flexible rubber coupling, a versatile and vital component of any piping system for a wide range of applications from air and water to sewage, acid and oil. This innovative rubber ball joint expansion coupling has been carefully engineered to meet the dynamic needs of industries where piping systems require flexibility, vibration dampening and reduced stress on equipment and piping structures.
Product application:
Liwei provided the drawings required for the expansion double ball joint, simplifying the customer's installation process. The working temperature range is -15 ℃ to 80 ℃ (with special variants that can handle -30 ℃ to 150 ℃), allowing the product to be used in environments with different thermal conditions. This makes the double ball flexible rubber joint an excellent choice for heating and cooling systems, industrial processing plants, water and wastewater treatment facilities, and many other temperature fluctuation factors.
Technical Parameters:
Diameter
DN |
Length
mm |
Axis displacement |
Radial
displacement |
Deflexion
displacement |
| TYPE 1 |
TYPE 2 |
| mm |
inch |
Extension |
Compression |
Extension |
Comgression |
TYPE 1 |
TYPE 2 |
TYPE1 |
TYPF 2 |
| 32 |
11/4" |
165 |
30 |
50 |
|
|
45 |
|
±7.5° |
|
| 40 |
11/2” |
165 |
30 |
50 |
|
|
45 |
|
±7.5° |
|
| 50 |
2" |
165 |
30 |
50 |
|
|
45 |
|
±7.5° |
|
| 65 |
21/2” |
175 |
30 |
50 |
|
|
45 |
|
±7.5° |
|
| 80 |
3" |
175 |
30 |
50 |
|
|
45 |
|
±7.5° |
|
| 100 |
4" |
225 |
35 |
50 |
|
|
45 |
|
±7.5° |
|
| 125 |
5" |
225 |
35 |
50 |
|
|
45 |
|
±7.5° |
|
| 150 |
6" |
225 |
35 |
50 |
|
|
45 |
|
±7.5° |
|
| 200 |
8" |
325 |
35 |
60 |
|
|
|
|
|
|
| 250 |
10" |
325 |
35 |
60 |
|
|
|
|
|
|
| 300 |
12" |
325 |
35 |
60 |
|
|
|
|
|
|
| 350 |
14" |
325 |
35 |
60 |
|
|
|
|
|
|
| 400 |
16" |
400 |
40 |
60 |
|
|
|
|
|
|
| 450 |
18" |
400 |
|
|
65 |
70 |
|
70 |
|
±12° |
| 500 |
20" |
400 |
|
|
65 |
70 |
|
70 |
|
±12° |
| 600 |
24" |
400 |
|
|
70 |
75 |
|
75 |
|
±12° |
| 700 |
28" |
400 |
|
|
70 |
75 |
|
75 |
|
±12° |
| 800 |
32" |
450 |
|
|
70 |
75 |
|
75 |
|
±12° |
| 900 |
36" |
450 |
|
|
70 |
75 |
|
75 |
|
±12° |
| 1000 |
40" |
450 |
|
|
75 |
80 |
|
70 |
|
±12° |
| 1200 |
48" |
500 |
|
|
75 |
80 |
|
70 |
|
±10° |
| 1400 |
56" |
500 |
|
|
75 |
80 |
|
70 |
|
±10° |
| 1600 |
64" |
500 |
|
|
75 |
80 |
|
70 |
|
±10° |
| 1800 |
72" |
500 |
|
|
80 |
85 |
|
65 |
|
±10° |
| 2000 |
80" |
550 |
|
|
80 |
85 |
|
65 |
|
±10° |
| 2200 |
88" |
550 |
|
|
80 |
85 |
|
65 |
|
±10° |
| 2400 |
96" |
550 |
|
|
80 |
85 |
|
65 |
|
±10° |
| 2600 |
104" |
550 |
|
|
80 |
85 |
|
65 |
|
±10° |
| 2800 |
112" |
550 |
|
|
80 |
85 |
|
65 |
|
±10° |
| 3000 |
120" |
550 |
|
|
80 |
85 |
|
65 |
|
±10 |
| • Special size and length can be customized for you. |
Advantages:
- Appearance: The external surface is smooth and free of defects such as burrs, rust, pores, slag inclusions, cracks, mechanical damage, etc.
- Welding: The weld seam should be flat, without pores, cracks, slag inclusions, and welding omissions. The roundness of the flange should comply with relevant standards.
- Anti corrosion: The flange is pickled and rust removed, and then subjected to anti-corrosion treatment.
- Product packaging: Measures such as rainproof, moisture-proof, rust proof, and shockproof should be taken. Our company generally uses plastic cloth, woven fabric and straw rope packaging, without recycling; Or packaged according to the demand side's requirements.
Support and Services:
- Delivery inspection (pressure test, specification test, material, quantity, packing).
- The quality is guaranteed for 12 months, supportthird-party testing.
- Free solutions and drawings can be provided.
- A well-trained and disciplined professional packaging team.
- 24h online service, quick response before and after sales.
- Support online factory inspection.
- On-time delivery.
- Free samples can be provided.
FAQ:
Q1:Are you trading company or manufacturer?
A1: We are professional manufacturer.
Q2:When the products will be shipped ?
A2:Within 7~25 days after receiving the prepayment.
Q3: Can you make the product as per client's requirement?
A3: Yes, We can customize according to customer requirements, and we have a professional technical team to draw drawings.
Q4: What are the payment terms for purchasing the liwei Double sphere flexible rubber joint?
A4: Payment can be made via T/T, Western Union, L/C, D/A, and MoneyGram. These flexible payment options are designed to accommodate different buyer preferences.
Q5: What is the supply ability of the liwei Double sphere flexible rubber joint?
A5: liwei can supply up to 100,000 pieces of the Double sphere flexible rubber joint per month, ensuring availability for projects of any scale.
