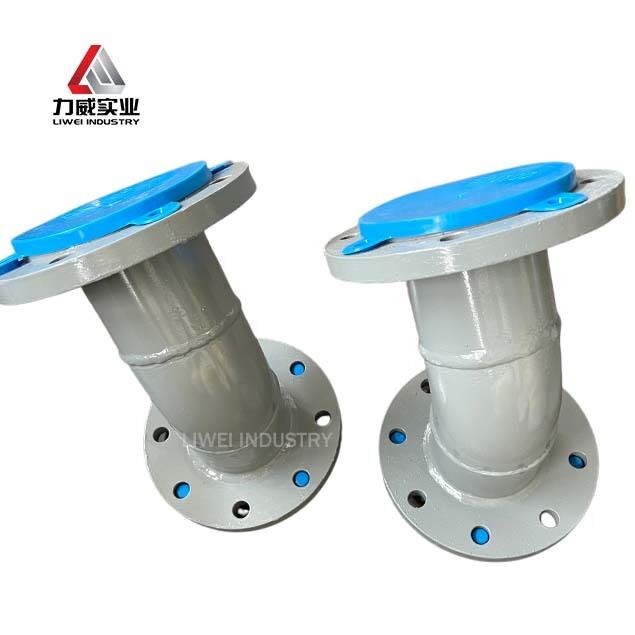

Rubber Lined Pipe Fittings Elbow Tee Reducer Bend Connector Flanged DN25-DN2000 Corrosion Resistant Industrial

Product Description:

The Rubber Lined Pipe Fittings series provides a complete range of flanged pipeline components including 90-degree and 45-degree elbows, equal tees, concentric and eccentric reducers, and custom bends designed for seamless integration with rubber lined pipeline systems. Each fitting features the same premium multi-material rubber lining as our straight pipes, ensuring consistent corrosion and abrasion resistance throughout the entire pipeline network.

Available in standard 1D, 1.5D, and 3D bend radius configurations, these rubber lined elbows and bends accommodate diverse piping layout requirements while maintaining full corrosion protection at directional change points. The equal tees provide reliable branch connections, and the concentric/eccentric reducers enable smooth diameter transitions without compromising lining integrity. All fittings utilize standardized flanged connections (ANSI/DIN/JIS) for easy on-site assembly and future maintenance access.

Liwei manufactures all rubber lined pipe fittings with the same rigorous quality standards applied to straight pipe products. Natural rubber, neoprene, EPDM, and nitrile lining options are available to match specific chemical exposure and temperature requirements. Custom angles, non-standard bend radii, and specialized flange drilling patterns are supported through our OEM and ODM services.

Features:

• Product Type: Rubber Lined Pipe Fittings (Elbow / Tee / Reducer / Bend / Connector)
• Fitting Range: 90° Elbow, 45° Elbow, Equal Tee, Reducer, Custom Bend
• Bend Radius Options: 1D / 1.5D / 3D Standard
• Lining Material: Natural Rubber, Neoprene, EPDM, Nitrile
• Outer Shell: Carbon Steel for Structural Integrity
• Diameter Range: DN25 to DN2000
• Flanged Connection: ANSI / DIN / JIS Standards for Easy Assembly
• Consistent Corrosion and Abrasion Resistance Across All Fittings
• Seamless Integration with Rubber Lined Straight Pipe Systems
• OEM and ODM Customization for Non-Standard Angles and Sizes

Technical Parameters:

Applications:

These rubber lined pipe fittings are essential components for complete pipeline systems in mining slurry transport, chemical processing plants, and industrial wastewater treatment facilities. The comprehensive fitting range ensures that directional changes, branch connections, and diameter transitions maintain the same level of corrosion and abrasion protection as the main pipeline, eliminating weak points that could lead to premature failure and costly downtime.

Liwei manufactures all rubber lined fittings under strict quality control with ISO 9001, TUV, WRAS, CO, MTC, PL, and IV certifications. Each fitting undergoes thorough dimensional and lining integrity inspection before shipment with a one-year warranty. Secure iron pallet packaging with wooden or steel frames ensures safe global delivery within 15-30 working days.
