Rubber Lined Pipe Fittings Elbow Tee Reducer Bend Flanged Connection Carbon Steel Shell Corrosion Resistant

Product Description:

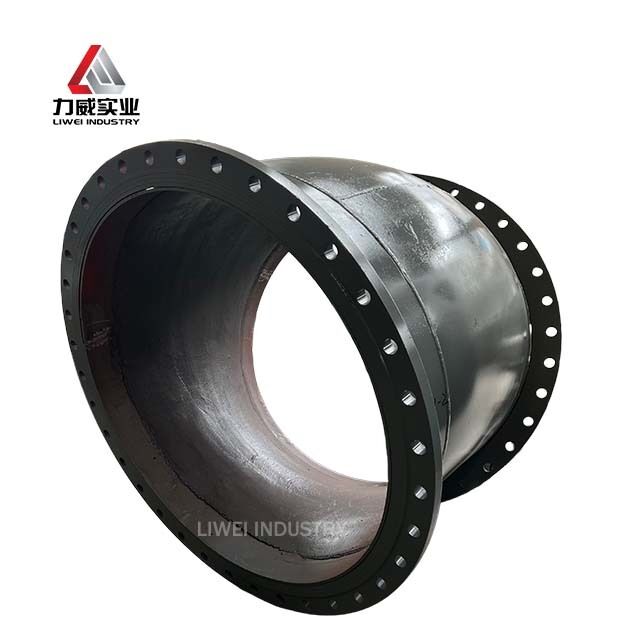

The Heavy Duty Abrasion Resistant Rubber Lined Steel Pipe is a wear-proof industrial pipeline solution engineered for demanding mining slurry, tailings transport, and abrasive media handling applications. Featuring a wear resistant grade rubber lining bonded to a robust carbon steel outer shell, this pipe delivers exceptional abrasion resistance that significantly outperforms bare steel and conventional lined pipes in high-wear environments. The large diameter capability up to DN2000 makes it suitable for high-volume mining and mineral processing operations.

The wear proof natural rubber lining absorbs the impact energy of suspended particles while providing a smooth, low-friction surface that minimizes material hang-up and reduces pumping energy costs. The rubber lining can be specified based on particle size, velocity, and impact angle requirements, ensuring optimal wear protection for each unique operating condition. The carbon steel outer shell maintains structural integrity under high-pressure slurry flow while the rubber inner layer extends service life substantially compared to unlined steel alternatives.

Liwei provides comprehensive OEM and ODM support for mining, mineral processing, power generation, and dredging industries. Each abrasion resistant rubber lined pipe is manufactured under strict quality control with full certification and a one-year warranty for complete operational reliability.

Features:

• Product Type: Heavy Duty Abrasion Resistant Rubber Lined Steel Pipe
• Lining Material: Wear Resistant Grade Natural Rubber / Neoprene
• Outer Pipe: Carbon Steel with Flanged Connection
• Superior Abrasion and Impact Resistance for Mining Environments
• Large Diameter Range: DN50 to DN2000
• Extended Service Life vs Unlined Steel Pipes
• Excellent Impact Energy Absorption for Slurry Particles
• Smooth Low-Friction Lining Reduces Pumping Energy Costs
• Temperature Range: -50°C to +150°C (Material Dependent)
• OEM and ODM Support for Mining and Industrial Applications

Technical Parameters:

Applications:

This heavy duty abrasion resistant rubber lined pipe is designed for mining slurry and tailings transport systems where continuous particle impact and abrasive wear are the primary pipeline challenges. The large diameter range up to DN2000 accommodates high-volume material flow in mineral processing plants, coal preparation facilities, and aggregate handling operations. Power plants benefit from extended service life in ash slurry and flue gas desulfurization (FGD) piping, while dredging contractors rely on the wear proof lining for sand and gravel conveyance in marine and river applications.

Liwei manufactures all rubber lined pipes under strict quality control with ISO9001, TUV, WRAS, CO, MTC, PL, and IV certifications. Each product undergoes thorough inspection including rubber adhesion peel testing and spark testing for lining integrity before shipment with a one-year warranty. Packaging utilizes secure iron pallets with wooden or steel frames for global safe delivery within 15-30 working days. With 1500 tons monthly supply capacity and minimum order of one set, we serve projects of all scales with T/T, Western Union, L/C, D/A, and MoneyGram payment options.
