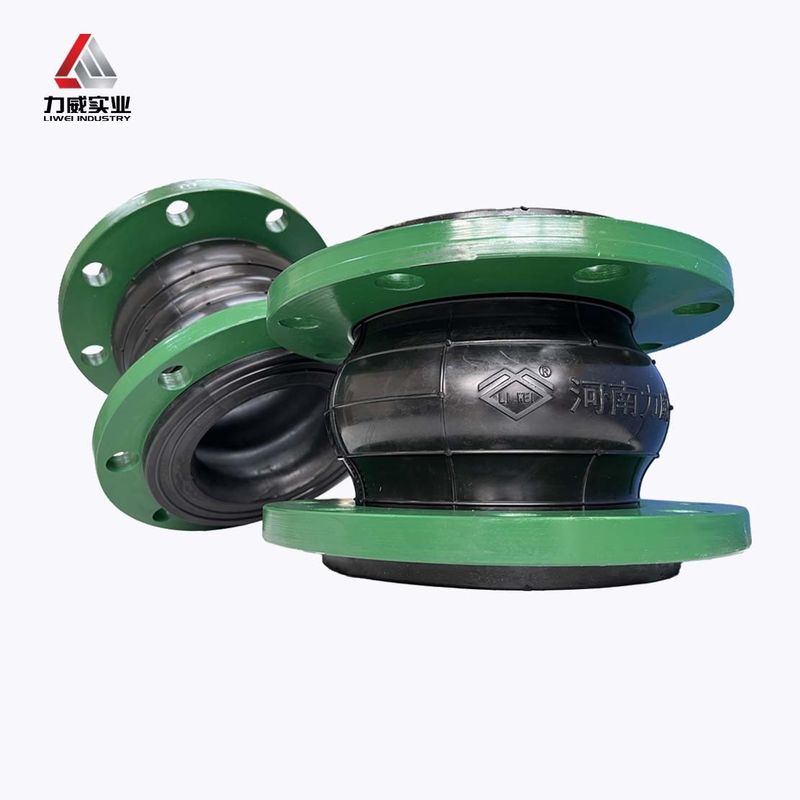

PN6-PN40 Single Sphere Flexible Rubber Joint with Vibration and pressure reduction
Product Description:
The biggest feature of a single ball flexible rubber joint is its ability to suppress vibration. This damping ability not only protects the pipeline system, but also helps to provide a safer and quieter operating environment. The rubber expansion coupling with a single ball flexible rubber joint relies on the special properties of rubber, such as long-range elasticity, impermeability, media resistance, climate resistance, and radiation resistance, to reduce pipeline vibration and noise, and to compensate for thermal expansion and contraction caused by temperature changes.
Features:
- Established for 36 years, our technical personnel have rich experience and expertise in the industry.
- High-quality finishing flange.
- Bright and smoothsphericalappearance.
- We have a professional rubber mixing center.Real materials can be seen.
- Galvanized steel wire and Multi-layer nylon cord fabric.
Technical Parameters:
DN
Diameter |
Length
mm |
Axis displacement |
Radial
displacement
|
Deflexion
displacement |
| TYPE 1 |
TYPE 2 |
| mm |
inch |
Extension |
Compression |
Extension |
Comgression |
TYPE 1 |
TYPE 2 |
TYPE1 |
TYPF 2 |
| 32 |
11/4" |
90 |
6 |
10 |
|
|
9 |
|
±7.5° |
|
| 40 |
11/2” |
95 |
7 |
10 |
|
|
9 |
|
±7.5° |
|
| 50 |
2" |
105 |
7 |
10 |
|
|
10 |
|
±7.5° |
|
| 65 |
21/2” |
115 |
7 |
13 |
|
|
11 |
|
±7.5° |
|
| 80 |
3" |
135 |
8 |
15 |
|
|
12 |
|
±7.5° |
|
| 100 |
4" |
150 |
10 |
19 |
|
|
13 |
|
±7.5° |
|
| 125 |
5" |
165 |
12 |
19 |
|
|
13 |
|
±7.5° |
|
| 150 |
6" |
180 |
12 |
20 |
|
|
14 |
|
±7.5° |
|
| 200 |
8" |
210 |
16 |
25 |
30 |
35 |
22 |
25 |
±7.5° |
±10° |
| 250 |
10" |
230 |
16 |
25 |
30 |
40 |
22 |
25 |
±7.5° |
±12° |
| 300 |
12" |
245 |
16 |
25 |
30 |
40 |
22 |
25 |
±7.5° |
±12° |
| 350 |
14" |
255 |
16 |
25 |
35 |
45 |
22 |
30 |
±7.5° |
±12° |
| 400 |
16" |
255 |
16 |
25 |
35 |
45 |
22 |
30 |
±7.5° |
±12° |
| 450 |
18" |
255 |
16 |
25 |
36 |
47 |
22 |
30 |
±7.5° |
±12° |
| 500 |
20" |
255 |
16 |
25 |
36 |
48 |
22 |
30 |
±7.5° |
±12° |
| 600 |
24" |
260 |
16 |
25 |
40 |
50 |
22 |
33 |
±7.5° |
±12° |
| 700 |
28" |
260 |
16 |
25 |
40 |
55 |
22 |
33 |
±7.5° |
±12° |
| 750 |
30" |
260 |
|
|
40 |
55 |
|
33 |
|
±12° |
| 800 |
32" |
260 |
16 |
25 |
45 |
55 |
22 |
35 |
±7.5° |
±12° |
| 900 |
36" |
260 |
16 |
25 |
45 |
55 |
22 |
35 |
±7.5° |
±12° |
| 1000 |
40" |
260 |
16 |
25 |
45 |
60 |
22 |
35 |
±7.5° |
±12° |
| 1100 |
44" |
300 |
|
|
45 |
60 |
|
35 |
±7.5° |
±12° |
| 1200 |
48" |
300 |
16 |
25 |
50 |
60 |
24 |
38 |
±7.5° |
±10° |
| 1300 |
52" |
300 |
|
|
50 |
60 |
|
38 |
|
±10° |
| 1400 |
56" |
350 |
|
|
50 |
70 |
|
40 |
|
±10° |
| 1500 |
60" |
350 |
|
|
60 |
70 |
|
40 |
|
±10° |
| 1600 |
64" |
350 |
18 |
25 |
60 |
70 |
24 |
46 |
±7.5° |
±10° |
| 1800 |
72" |
400 |
18 |
25 |
60 |
75 |
24 |
48 |
±7.5° |
±10° |
| 2000 |
80" |
450 |
|
|
70 |
75 |
|
50 |
|
±10° |
| 2200 |
88" |
500 |
|
|
70 |
80 |
|
60 |
|
±10° |
| 2400 |
96" |
500 |
|
|
80 |
80 |
|
60 |
|
±10° |
| 2600 |
104" |
500 |
|
|
85 |
80 |
|
60 |
|
±10° |
| 2800 |
112" |
550 |
|
|
85 |
80 |
|
60 |
|
±10° |
| 3000 |
120" |
550 |
|
|
85 |
80 |
|
60 |
|
±10° |
Applications:
The Liwei brand Single Sphere Flexible Rubber Joint is a high-quality product designed for various application scenarios, enhancing piping systems' efficiency and durability. With a model number range from DN15 to DN4000, this rubber flexible single ball joint is suitable for a wide array of pipe diameters, ensuring a perfect fit for nearly any industrial, commercial, or residential piping requirement.Be mainly used in
- Petroleum industry
- Mining industry
- Metallurgical manufacturing industry
- Environmental protection industry
- Water supply and drainage industry
- Paper industry
Our Services:
- Delivery inspection (pressure test, specification test, material, quantity, packing).
- The quality is guaranteed for 12 months, supportthird-party testing.
- Free solutions and drawings can be provided.
- A well-trained and disciplined professional packaging team.
- 24h online service, quick response before and after sales.
FAQ:
Q1:Can you send samples?
A1:Of course , we can send samples to all parts of the world,samples can be provided for free.
Q2: Where are Liwei single sphere flexible rubber joints manufactured?
A2: The Liwei single sphere flexible rubber joints are manufactured in Henan, China, adhering to high-quality standards and production practices.
Q3: What certifications do Liwei single sphere flexible rubber joints have?
A3: Liwei single sphere flexible rubber joints come with multiple certifications, including ISO9001, TUV, WRAS, CO, MTC, PL, IV, etc., ensuring compliance with international quality and safety standards.
Q4: How can you guarantee the quality or any warranty?
A4: If any quality problems during use, all the products can be returned or according to consumer's requests.
Q5:Are you trading company or manufacturer?
A5: We are professional manufacturer.
