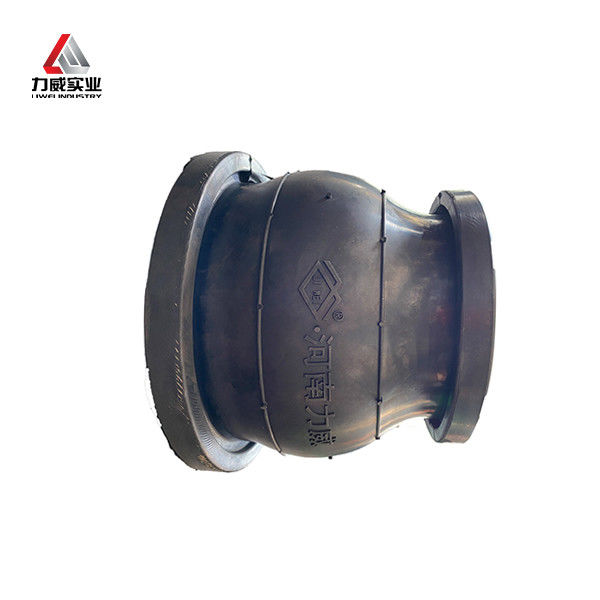

Customizable Flange Connection Concentric Reducing Rubber Joint With Corrosion Resistance
Concentric reducing rubber joint details:
The Concentric Reducing Rubber Joint is an essential component designed for a seamless integration into various piping systems, ensuring a reliable and efficient connection between pipes of differing diameters. With its versatile application in water supply, sewage, and industrial pipelines, this reducing rubber joint stands as a robust solution for an array of fluid transfer needs. This product is particularly crafted to accommodate both horizontal and vertical installation types, further asserting its adaptability to different system configurations.
Concentric reducing rubber joint advantages:
Rich production experience
Professional technical team
Effective cooperation between logistics departments
High quality product accessories
Excellent corrosion resistance
Excellent shock absorption effect
Good after-sales service
Extremely high industry reputation
Technical Parameters:
| DNmax×DNmin |
Length
(mm) |
Axial displacemen |
Horizontal
movement
(mm) |
Deflection
angle
(a1+a₂) |
DNmax×DNmin |
Length
(mm) |
Axial displacement |
Horizontal
movement
(mm) |
Deflection
angle
(a1+a₂) |
Extension
(mm) |
Compression
(mm) |
Extension
(mm) |
Compression
(mm) |
| 32×25 |
115 |
20 |
30 |
45 |
35° |
125×100 |
200 |
22 |
30 |
40 |
35° |
| 40×25 |
115 |
20 |
30 |
45 |
35° |
150×50 |
200 |
22 |
30 |
40 |
35° |
| 40×32 |
115 |
20 |
30 |
45 |
35° |
150×125 |
200 |
25 |
35 |
40 |
30° |
| 50×32 |
180 |
20 |
30 |
45 |
35° |
200×80 |
200 |
25 |
35 |
40 |
30° |
| 50×40 |
180 |
20 |
30 |
45 |
35° |
200×150 |
200 |
25 |
35 |
40 |
30° |
| 65×32 |
180 |
20 |
30 |
45 |
35° |
250×100 |
220 |
25 |
35 |
40 |
30° |
| 65×50 |
180 |
20 |
30 |
45 |
35° |
300×250 |
220 |
25 |
35 |
40 |
30° |
| 80×40 |
180 |
20 |
30 |
45 |
35° |
350×300 |
240 |
25 |
35 |
35 |
30° |
| 80×65 |
180 |
20 |
30 |
45 |
35° |
400×350 |
240 |
25 |
38 |
35 |
30° |
| 100×40 |
180 |
22 |
30 |
40 |
35° |
500×300 |
240 |
28 |
38 |
35 |
26° |
| 100×80 |
180 |
22 |
30 |
40 |
35° |
500x400 |
240 |
28 |
38 |
35 |
26° |
| 125×5 |
180 |
22 |
30 |
40 |
35° |
600*400 |
240 |
28 |
38 |
35 |
26° |
| • Special size and length can be customized for you. |
Applications:
The concentric reducing rubber joint is particularly suitable for use in water supply and wastewater treatment plants, heating and cooling systems, industrial processing pipelines, and other areas where a concentric reducing rubber joint is required to mitigate the effects of thermal expansion, absorb vibrations, and compensate for misalignments. Its high-quality construction and reliable performance make it a top choice for professionals in the field seeking a dependable solution for their piping systems.
Our Services:
- Delivery inspection (pressure test, specification test, material, quantity, packing).
- The quality is guaranteed for 12 months, supportthird-party testing.
- Free solutions and drawings can be provided.
- A well-trained and disciplined professional packaging team.
- 24h online service, quick response before and after sales.
- Support online factory inspection
- On-time delivery
- Free samples can be provided
Concentric reducing rubber joint packaging:
The packaging of the product complies with the provisions of GB/T13384 standard, and measures such as rainproof, moisture-proof, rust proof, and shockproof are taken. Our company generally uses plastic cloth, woven fabric and straw rope packaging, without recycling; Or packaged according to the demand side's requirements.
FAQ:
Q1: What sizes are available for the liwei Concentric reducing rubber joint?
A1: The liwei Concentric reducing rubber joint is available in various sizes ranging from DN25*32 to DN600*400 to suit different piping requirements.
Q2: Where is the liwei Concentric reducing rubber joint manufactured?
A2: The liwei Concentric reducing rubber joint is manufactured in Henan, China, ensuring high-quality standards and manufacturing expertise.
Q3: What certifications does the liwei Concentric reducing rubber joint have?
A3: The liwei Concentric reducing rubber joint comes with a range of certifications including ISO9001, TUV, WRAS, CO, MTC, PL, IV, and others, demonstrating its compliance with international quality and safety standards.
Q4: What is the minimum order quantity for the liwei Concentric reducing rubber joint?
A4: The minimum order quantity for the liwei Concentric reducing rubber joint is 1 set, making it convenient for customers to order according to their specific needs.
Q5: What are the payment terms for purchasing the liwei Concentric reducing rubber joint?
A5: Payment for the liwei Concentric reducing rubber joint can be made through various methods including T/T, Western Union, L/C, D/A, and MoneyGram, offering flexibility for different purchasing preferences.
