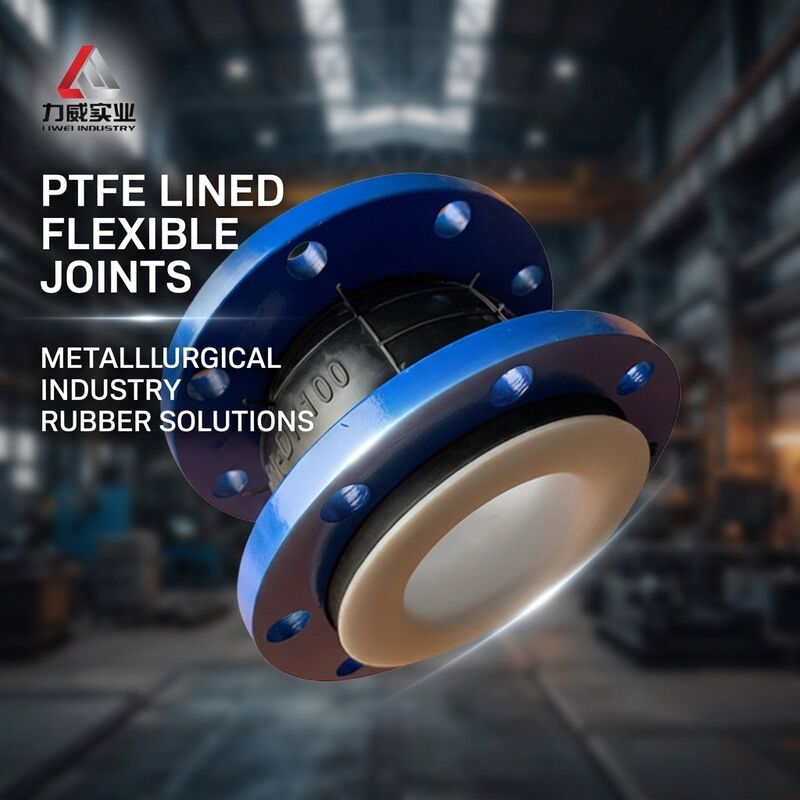

Product Description:
One of the key features of Single Sphere Flexible Rubber Joint is its excellent corrosion resistance, which ensures a longer lifespan and better performance. The Flexible Single Sphere Rubber Joint is made of high-quality materials that are resistant to corrosion, chemicals, and other harsh environmental conditions. This makes it ideal for use in harsh and demanding environments where other products may not be able to withstand the conditions.
Rubber Joint is versatile and can be used in various applications, including pipeline systems, pumps, valves, and other equipment. It is also easy to install and maintain, making it a popular choice among customers. The Rubber Flexible Single Sphere Joint is designed to absorb vibrations, reduce noise, and compensate for thermal expansion and contraction. This helps to protect the equipment and ensure its longevity.
In conclusion, the Rubber Flexible Single Sphere Joint is an essential product for many industries, and its benefits are numerous. Its excellent corrosion resistance, free solutions and drawings, delivery inspection, and versatile applications make it a reliable and durable product that is trusted by customers worldwide.
Features:
Allow for four way movements.
Precision molded of synthetic rubber and nylon.
Execllent ability to absorb vibration and noise.
Withstand high pressure.6.Easy to install,use floating flange.
Our Advantages:
Established for 36 years, our technical personnel have rich experience and expertise in the industry.
High-quality finishing flange.
Bright and smoothsphericalappearance.
We have a professional rubber mixing center.Real materials can be seen.
Galvanized steel wire and Multi-layer nylon cord fabric.
Our company participated in the drafting of the national standard GB/T26121-2010 of "Flexible Rubber Joints".
Apply for a utility model patent flexible rubberjoint Patent number: 032418558.
Support and Services:
The Single Sphere Flexible Rubber Joint is designed to absorb noise, vibration, and shock in pipelines and equipment. It is easy to install and requires minimal maintenance. Our technical support team is available to assist with any questions or issues related to the product's installation or performance. We also offer services such as on-site inspections, testing, and repairs to ensure optimal functionality of the joint. Contact us for more information on our technical support and services.
Packing and Shipping:
Packing
Inner: Plastic film, then put into carton case.
Outer: Safe firmed export plywood case, marking on carton case and wooden case can be customized, or packing as per your requests.
Shipping:
1.We could deliver the goods by international express, such as DHL, UPS, TNT, EMS, others.
2.You could also choose the transportation according to your schedule and budget.3.Or you could use your own cargo agent.
Technical Parameters:
Diameter
DN |
Length
mm |
Axis displacement |
Radial
displacement |
Deflexion
displacement |
| TYPE 1 |
TYPE 2 |
| mm |
inch |
Extension |
Compression |
Extension |
Comgression |
TYPE 1 |
TYPE 2 |
TYPE1 |
TYPF 2 |
| 32 |
11/4" |
90 |
6 |
10 |
|
|
9 |
|
±7.5° |
|
| 40 |
11/2” |
95 |
7 |
10 |
|
|
9 |
|
±7.5° |
|
| 50 |
2" |
105 |
7 |
10 |
|
|
10 |
|
±7.5° |
|
| 65 |
21/2” |
115 |
7 |
13 |
|
|
11 |
|
±7.5° |
|
| 80 |
3" |
135 |
8 |
15 |
|
|
12 |
|
±7.5° |
|
| 100 |
4" |
150 |
10 |
19 |
|
|
13 |
|
±7.5° |
|
| 125 |
5" |
165 |
12 |
19 |
|
|
13 |
|
±7.5° |
|
| 150 |
6" |
180 |
12 |
20 |
|
|
14 |
|
±7.5° |
|
| 200 |
8" |
210 |
16 |
25 |
30 |
35 |
22 |
25 |
±7.5° |
±10° |
| 250 |
10" |
230 |
16 |
25 |
30 |
40 |
22 |
25 |
±7.5° |
±12° |
| 300 |
12" |
245 |
16 |
25 |
30 |
40 |
22 |
25 |
±7.5° |
±12° |
| 350 |
14" |
255 |
16 |
25 |
35 |
45 |
22 |
30 |
±7.5° |
±12° |
| 400 |
16" |
255 |
16 |
25 |
35 |
45 |
22 |
30 |
±7.5° |
±12° |
| 450 |
18" |
255 |
16 |
25 |
36 |
47 |
22 |
30 |
±7.5° |
±12° |
| 500 |
20" |
255 |
16 |
25 |
36 |
48 |
22 |
30 |
±7.5° |
±12° |
| 600 |
24" |
260 |
16 |
25 |
40 |
50 |
22 |
33 |
±7.5° |
±12° |
| 700 |
28" |
260 |
16 |
25 |
40 |
55 |
22 |
33 |
±7.5° |
±12° |
| 750 |
30" |
260 |
|
|
40 |
55 |
|
33 |
|
±12° |
| 800 |
32" |
260 |
16 |
25 |
45 |
55 |
22 |
35 |
±7.5° |
±12° |
| 900 |
36" |
260 |
16 |
25 |
45 |
55 |
22 |
35 |
±7.5° |
±12° |
| 1000 |
40" |
260 |
16 |
25 |
45 |
60 |
22 |
35 |
±7.5° |
±12° |
| 1100 |
44" |
300 |
|
|
45 |
60 |
|
35 |
±7.5° |
±12° |
| 1200 |
48" |
300 |
16 |
25 |
50 |
60 |
24 |
38 |
±7.5° |
±10° |
| 1300 |
52" |
300 |
|
|
50 |
60 |
|
38 |
|
±10° |
| 1400 |
56" |
350 |
|
|
50 |
70 |
|
40 |
|
±10° |
| 1500 |
60" |
350 |
|
|
60 |
70 |
|
40 |
|
±10° |
| 1600 |
64" |
350 |
18 |
25 |
60 |
70 |
24 |
46 |
±7.5° |
±10° |
| 1800 |
72" |
400 |
18 |
25 |
60 |
75 |
24 |
48 |
±7.5° |
±10° |
| 2000 |
80" |
450 |
|
|
70 |
75 |
|
50 |
|
±10° |
| 2200 |
88" |
500 |
|
|
70 |
80 |
|
60 |
|
±10° |
| 2400 |
96" |
500 |
|
|
80 |
80 |
|
60 |
|
±10° |
| 2600 |
104" |
500 |
|
|
85 |
80 |
|
60 |
|
±10° |
| 2800 |
112" |
550 |
|
|
85 |
80 |
|
60 |
|
±10° |
| 3000 |
120" |
550 |
|
|
85 |
80 |
|
60 |
|
±10° |
| • Special size and length can be customized for you. |
FAQ:
1. What is the brand name of the flexible rubber joint product?
A: The brand name of the flexible rubber joint product is liwei.
2. What is the minimum order quantity for the liwei flexible rubber joint product?
A: The minimum order quantity for the liwei flexible rubber joint product is one set.
3. What are the payment terms for the liwei flexible rubber joint product?
A: The payment terms for the liwei flexible rubber joint product include T/T, Western Union, L/C, D/A, and MoneyGram.
4: Do you accept small quantity order?
A: Of course we do.
5: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement
