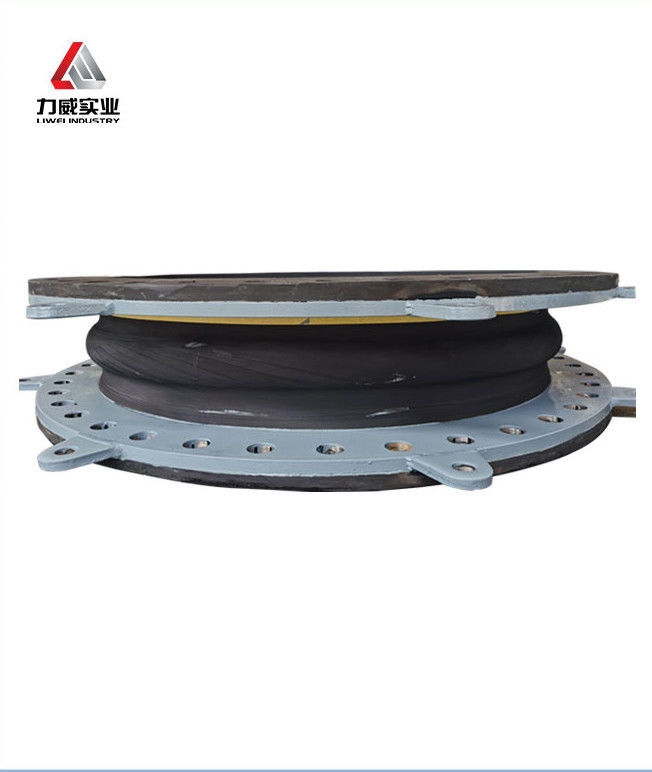

Product Description:
Rubber flexible joint is also called: flexible rubber expansion joint, rubber soft connection, and soft rubber joint, rubber compensator, rubber shock hose, rubber shock reducer, is one kind of high elasticity, high air tightness, medium resistance and weather ability pipe fittings.
Rubber flexible joint consists of outer rubber, inner rubber, framework layer, and reinforcing bar and flange. Relying on rubber's special performances as long range elasticity, air impermeability, medium, climate and radiation resistance, rubber expansion couplings can reduce the vibration and noise of pipeline, and can be caused by the temperature change of heat bilges cold shrink compensation effect.
Advantages:
Established for 36 years, our technical personnel have rich experience and expertise in the industry.
Our rubber joints are the drafting unit of national standards, and the main process is molding.
High demand production, high quality product assurance.
We have a professional rubber mixing center.Real materials can be seen.
Our company participated in the drafting of the national standard GB/T26121-2010 of "Flexible Rubber Joints".
Apply for a utility model patent flexible rubberjoint Patent number: 032418558.
Free samples are provided.
Applications:
Air Conditioning System
Air ducts, chemical lines
Circulating water lines
Compressor lines, paper stock lines
Pump-suction and discharge
Refrigeration lines
Turbine to condenser
Support and Services:
The Single Sphere Flexible Rubber Joint is designed to absorb vibration and noise in pipelines, as well as to compensate for movement and misalignment. Our technical support and services for this product include:
- Assistance with product selection and sizing
- Installation guidance and support
- Troubleshooting and problem-solving
- Regular maintenance recommendations
- Repair and replacement services
Our team of experts is available to provide you with the support and services you need to ensure optimal performance and longevity of your Single Sphere Flexible Rubber Joint.
Packing and Shipping:
Inner: Plastic film, then put into carton case.
Outer: Safe firmed export plywood case, marking on carton case and wooden case can be customized, or packing as per your requests.
Shipping:
1.We could deliver the goods by international express, such as DHL, UPS, TNT, EMS, others.
2.You could also choose the transportation according to your schedule and budget.3.Or you could use your own cargo agent.
Technical Parameters:
Diameter
DN |
Length
mm |
Axis displacement |
Radial
displacement |
Deflexion
displacement |
| TYPE 1 |
TYPE 2 |
| mm |
inch |
Extension |
Compression |
Extension |
Comgression |
TYPE 1 |
TYPE 2 |
TYPE1 |
TYPF 2 |
| 32 |
11/4" |
90 |
6 |
10 |
|
|
9 |
|
±7.5° |
|
| 40 |
11/2” |
95 |
7 |
10 |
|
|
9 |
|
±7.5° |
|
| 50 |
2" |
105 |
7 |
10 |
|
|
10 |
|
±7.5° |
|
| 65 |
21/2” |
115 |
7 |
13 |
|
|
11 |
|
±7.5° |
|
| 80 |
3" |
135 |
8 |
15 |
|
|
12 |
|
±7.5° |
|
| 100 |
4" |
150 |
10 |
19 |
|
|
13 |
|
±7.5° |
|
| 125 |
5" |
165 |
12 |
19 |
|
|
13 |
|
±7.5° |
|
| 150 |
6" |
180 |
12 |
20 |
|
|
14 |
|
±7.5° |
|
| 200 |
8" |
210 |
16 |
25 |
30 |
35 |
22 |
25 |
±7.5° |
±10° |
| 250 |
10" |
230 |
16 |
25 |
30 |
40 |
22 |
25 |
±7.5° |
±12° |
| 300 |
12" |
245 |
16 |
25 |
30 |
40 |
22 |
25 |
±7.5° |
±12° |
| 350 |
14" |
255 |
16 |
25 |
35 |
45 |
22 |
30 |
±7.5° |
±12° |
| 400 |
16" |
255 |
16 |
25 |
35 |
45 |
22 |
30 |
±7.5° |
±12° |
| 450 |
18" |
255 |
16 |
25 |
36 |
47 |
22 |
30 |
±7.5° |
±12° |
| 500 |
20" |
255 |
16 |
25 |
36 |
48 |
22 |
30 |
±7.5° |
±12° |
| 600 |
24" |
260 |
16 |
25 |
40 |
50 |
22 |
33 |
±7.5° |
±12° |
| 700 |
28" |
260 |
16 |
25 |
40 |
55 |
22 |
33 |
±7.5° |
±12° |
| 750 |
30" |
260 |
|
|
40 |
55 |
|
33 |
|
±12° |
| 800 |
32" |
260 |
16 |
25 |
45 |
55 |
22 |
35 |
±7.5° |
±12° |
| 900 |
36" |
260 |
16 |
25 |
45 |
55 |
22 |
35 |
±7.5° |
±12° |
| 1000 |
40" |
260 |
16 |
25 |
45 |
60 |
22 |
35 |
±7.5° |
±12° |
| 1100 |
44" |
300 |
|
|
45 |
60 |
|
35 |
±7.5° |
±12° |
| 1200 |
48" |
300 |
16 |
25 |
50 |
60 |
24 |
38 |
±7.5° |
±10° |
| 1300 |
52" |
300 |
|
|
50 |
60 |
|
38 |
|
±10° |
| 1400 |
56" |
350 |
|
|
50 |
70 |
|
40 |
|
±10° |
| 1500 |
60" |
350 |
|
|
60 |
70 |
|
40 |
|
±10° |
| 1600 |
64" |
350 |
18 |
25 |
60 |
70 |
24 |
46 |
±7.5° |
±10° |
| 1800 |
72" |
400 |
18 |
25 |
60 |
75 |
24 |
48 |
±7.5° |
±10° |
| 2000 |
80" |
450 |
|
|
70 |
75 |
|
50 |
|
±10° |
| 2200 |
88" |
500 |
|
|
70 |
80 |
|
60 |
|
±10° |
| 2400 |
96" |
500 |
|
|
80 |
80 |
|
60 |
|
±10° |
| 2600 |
104" |
500 |
|
|
85 |
80 |
|
60 |
|
±10° |
| 2800 |
112" |
550 |
|
|
85 |
80 |
|
60 |
|
±10° |
| 3000 |
120" |
550 |
|
|
85 |
80 |
|
60 |
|
±10° |
| • Special size and length can be customized for you. |
FAQ:
Q: What is the brand name of this product?
A: The brand name of this product is liwei.
Q: What is the model number of this product?
A: The model number of this product is DN15-DN4000.
Q: What are the packaging details for this product?
A: The packaging details for this product include inner plastic film, outer wooden case. If multiple compensators are packed in one case, we will use a steel frame to fix it.
Q: Is the price negotiable?
A: Yes, the price is negotiable.
