Product Description:

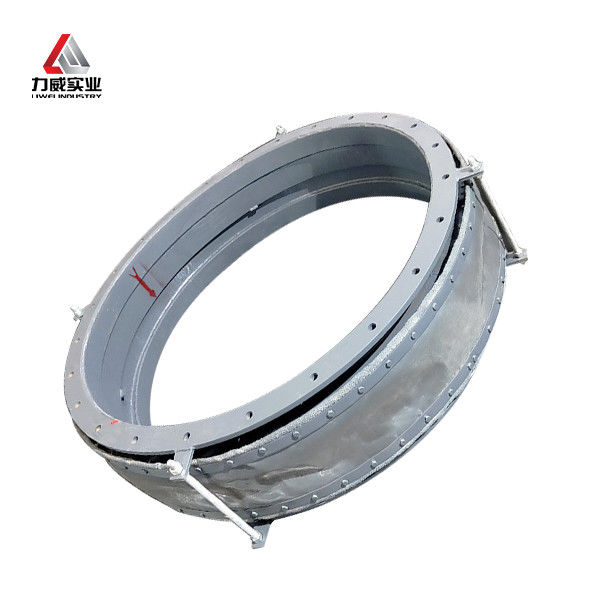

Manufactured by the renowned brand, liwei, this compensator is available in various flange materials including SS304, SS316, carbon steel, and more. It is designed to be highly durable and long-lasting, making it a cost-effective solution for customers who require a reliable and efficient compensator.
One of the key benefits of this product is its insulating fabric expansion joint, which allows it to effectively absorb movement and vibration in pipelines. The synthetic fabric bellow joint is designed to accommodate axial, lateral, and angular movements, making it an ideal solution for customers who require a compensator that can handle a wide range of movements.
Features:
Excellent materials
It is made of high-quality materials, which are harder and more durable than ordinary materials.
Factory outlet
Direct factory shipment, reducing intermediate prices, benefiting consumers, with high cost-effectiveness.
Control quality
Use professional testing equipment to strictly inspect products and ensure product quality.
Technical Parameters:
| Rectangular product specifications |
Pipe outside diameter |
A |
B |
L, |
L |
C |
C |
1 |
t₁ |
t₂ |
t, |
L |
L, |
n |
n |
c/c |
d |
Hele Ne
l |
| 700×500 |
700×500 |
702 |
502 |
792 |
592 |
760 |
560 |
95 |
95 |
95 |
90 |
570 |
380 |
6 |
4 |
29/29 |
14 |
28 |
| 700*700 |
700×700 |
702 |
702 |
792 |
792 |
760 |
760 |
95 |
95 |
95 |
95 |
570 |
570 |
6 |
6 |
29/29 |
14 |
32 |
| 700×800 |
700×800 |
702 |
802 |
814 |
914 |
774 |
874 |
112 |
110 |
109 |
110 |
550 |
654 |
5 |
6 |
36/36 |
18 |
30 |
| 800×800 |
800×800 |
802 |
802 |
914 |
914 |
874 |
874 |
110 |
109 |
109 |
110 |
654 |
654 |
6 |
6 |
36/36 |
18 |
32 |
| 800×1200 |
800×1200 |
802 |
1202 |
914 |
1314 |
874 |
1274 |
110 |
109 |
116 |
115 |
654 |
1044 |
6 |
9 |
36/36 |
18 |
38 |
| 800×1600 |
800×1600 |
802 |
1602 |
914 |
1714 |
874 |
1674 |
110 |
109 |
119 |
123 |
654 |
1428 |
6 |
12 |
36/36 |
18 |
44 |
| 900×400 |
900×400 |
902 |
402 |
992 |
492 |
960 |
460 |
96 |
96 |
92 |
92 |
768 |
276 |
8 |
3 |
29/29 |
14 |
30 |
| 900×700 |
900×700 |
902 |
702 |
1014 |
814 |
974 |
774 |
124 |
121 |
110 |
112 |
726 |
550 |
6 |
5 |
36/36 |
18 |
30 |
| 900×1200 |
900x1200 |
902 |
1202 |
1014 |
1314 |
974 |
1274 |
124 |
120 |
110 |
115 |
726 |
1044 |
6 |
9 |
36/36 |
18 |
38 |
| 1000×600 |
1000×600 |
1002 |
602 |
1114 |
714 |
1074 |
674 |
117 |
120 |
112 |
113 |
840 |
448 |
7 |
4 |
36/36 |
18 |
30 |
| 1000×700 |
1000×700 |
1002 |
702 |
1114 |
814 |
1074 |
774 |
117 |
120 |
110 |
112 |
840 |
550 |
7 |
5 |
36/36 |
18 |
32 |
| 1000×800 |
1000×800 |
1002 |
802 |
1114 |
914 |
1074 |
874 |
117 |
120 |
109 |
110 |
840 |
654 |
7 |
6 |
36/36 |
18 |
34 |
| 1000×1000 |
1000×1000 |
1002 |
1002 |
1114 |
1114 |
1074 |
1074 |
117 |
16 |
120 |
117 |
840 |
840 |
7 |
7 |
36/36 |
18 |
36 |
| 1200×600 |
1200×600 |
1202 |
602 |
1314 |
714 |
1274 |
674 |
115 |
116 |
112 |
113 |
1044 |
448 |
9 |
4 |
36/36 |
18 |
34 |
| 1200×700 |
1200×700 |
1202 |
702 |
1314 |
814 |
1274 |
774 |
115 |
116 |
110 |
112 |
1044 |
550 |
9 |
5 |
36/36 |
18 |
36 |
| 1200×800 |
1200×800 |
1202 |
802 |
1314 |
914 |
1274 |
874 |
115 |
116 |
115 |
116 |
104 |
654 |
9 |
6 |
36/36 |
18 |
38 |
| 1200x1000 |
1200×1000 |
1202 |
1002 |
1314 |
1114 |
1274 |
1074 |
115 |
116 |
120 |
117 |
1044 |
840 |
9 |
7 |
36/36 |
18 |
40 |
| 1200×1200 |
1200×1200 |
1202 |
1202 |
1314 |
1314 |
1274 |
1274 |
115 |
116 |
116 |
115 |
1044 |
1044 |
9 |
9 |
36/36 |
18 |
44 |
| 1400×700 |
1400×700 |
1402 |
702 |
1514 |
814 |
1474 |
774 |
110 |
114 |
110 |
112 |
1254 |
550 |
11 |
5 |
36/36 |
18 |
40 |
| 1400×800 |
1400×800 |
1402 |
802 |
1514 |
914 |
1474 |
874 |
110 |
1 |
109 |
110 |
1254 |
654 |
11 |
6 |
36/36 |
18 |
42 |
| 1400×900 |
1400×900 |
1402 |
902 |
1514 |
1014 |
1474 |
974 |
110 |
114 |
121 |
124 |
1254 |
726 |
11 |
6 |
36/36 |
18 |
42 |
| 1400×1000 |
1400×1000 |
1402 |
1002 |
1514 |
1114 |
1474 |
1074 |
110 |
114 |
120 |
117 |
1254 |
840 |
11 |
7 |
36/36 |
18 |
44 |
| 1400x1200 |
1400x1200 |
1402 |
1202 |
1514 |
1314 |
1474 |
1274 |
110 |
114 |
16 |
115 |
1254 |
1044 |
11 |
9 |
36/36 |
18 |
48 |
| 1500×800 |
1500×800 |
1502 |
802 |
1614 |
914 |
1574 |
874 |
116 |
122 |
109 |
110 |
1342 |
654 |
11 |
6 |
36/36 |
18 |
42 |
| 1500×900 |
1500×900 |
1502 |
902 |
1614 |
1014 |
1574 |
974 |
116 |
122 |
121 |
124 |
1342 |
726 |
11 |
6 |
36/36 |
18 |
42 |
| 1500×1000 |
1500×1000 |
1502 |
1202 |
1614 |
1114 |
1574 |
1074 |
116 |
122 |
120 |
117 |
1342 |
840 |
11 |
7 |
36/36 |
18 |
44 |
| 1500×1200 |
1500×1200 |
1502 |
1202 |
1614 |
1314 |
1574 |
1274 |
116 |
122 |
116 |
115 |
1342 |
1044 |
11 |
9 |
36/36 |
18 |
48 |
| 1600×1000 |
1600x1000 |
1602 |
002 |
1714 |
1114 |
1674 |
1074 |
117 |
120 |
120 |
117 |
1440 |
840 |
12 |
7 |
36/36 |
18 |
46 |
| 1600x1200 |
1600x1200 |
1602 |
1202 |
1714 |
1314 |
1674 |
1274 |
117 |
20 |
116 |
115 |
1440 |
1044 |
12 |
9 |
36/36 |
18 |
50 |
| 1600×1400 |
1600×1400 |
1602 |
1402 |
1728 |
1528 |
1678 |
1478 |
139 |
140 |
134 |
136 |
1400 |
1206 |
10 |
9 |
38/38 |
22 |
46 |
| 1600×1600 |
1600×1600 |
1602 |
1602 |
1728 |
1728 |
1678 |
1678 |
139 |
140 |
140 |
139 |
1400 |
1400 |
10 |
10 |
38/38 |
22 |
48 |
| 1800×900 |
1800×900 |
1802 |
902 |
1914 |
1014 |
1874 |
974 |
118 |
117 |
121 |
124 |
1638 |
726 |
14 |
6 |
36/36 |
18 |
48 |
| 1800×1000 |
1800×1000 |
1802 |
1002 |
1914 |
1114 |
1874 |
1074 |
118 |
117 |
120 |
117 |
1638 |
840 |
14 |
7 |
36/36 |
18 |
50 |
| 1800×1200 |
1800×1200 |
1802 |
1202 |
1928 |
1328 |
1878 |
1278 |
135 |
134 |
142 |
142 |
1608 |
994 |
12 |
7 |
36/36 |
18 |
46 |
| 1800×1400 |
1800×1400 |
1802 |
1402 |
1928 |
1528 |
1878 |
1478 |
135 |
134 |
34 |
136 |
1608 |
1026 |
12 |
9 |
36/36 |
18 |
50 |
| 1800×1800 |
1800×1800 |
1802 |
1802 |
1928 |
1928 |
1878 |
1878 |
135 |
34 |
134 |
135 |
1608 |
1608 |
12 |
12 |
36/36 |
18 |
56 |
| 2000×1000 |
2000×1000 |
1802 |
1004 |
1928 |
1130 |
1878 |
1080 |
135 |
134 |
135 |
135 |
1608 |
810 |
12 |
6 |
36/36 |
18 |
46 |
| • Special size and length can be customized for you. |
Applications:
Non Metal Fabric Compensators are widely used in various piping systems, such as heat piping, air conditioning piping, industrial piping and so on. In these systems, fabric compensators can effectively absorb the thermal expansion and contraction caused by temperature changes, as well as the displacement caused by equipment vibration, so as to ensure the normal operation of piping systems.
Support and Services:
Our Non Metal Fabric Compensator is designed to absorb thermal expansion, vibration, and misalignment in piping systems. It is made of high-quality fabric material that is resistant to high temperatures and corrosion.
We provide technical support and services for our Non Metal Fabric Compensator product, including installation guidance, troubleshooting, and maintenance recommendations. Our team of experts is available to assist with any questions or concerns you may have.
Additionally, we offer customization services to meet specific project requirements. We can design and manufacture Non Metal Fabric Compensators in various sizes, shapes, and materials to fit your specific needs.
Packing and Shipping:
Packing
Inner: Plastic film, then put into carton case.
Outer: Safe firmed export plywood case, marking on carton case and wooden case can be customized, or packing as per your requests.
Shipping:
1.We could deliver the goods by international express, such as DHL, UPS, TNT, EMS, others.
2.You could also choose the transportation according to your schedule and budget.3.Or you could use your own cargo agent.
FAQ:
Q: What is the brand name of this product?
A: The brand name of this product is liwei.
Q: Where is the place of origin of this product?
A: The place of origin of this product is Henan, China.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1 set.
Q: What is the price of this product?
A: The price of this product is negotiable.
Q: Do you accept small quantity order?
A: Of course we do.
Q: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement
