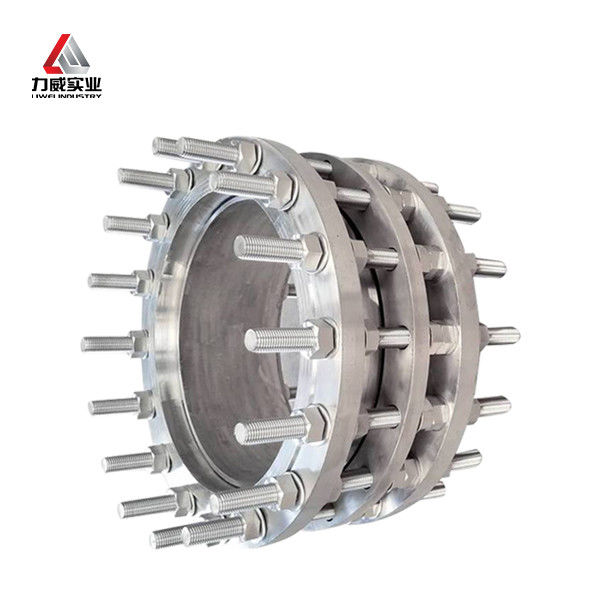

Steel Joint Description:
The dismantling joint consists of the main body,the sealing ring,the gland,the telescopic short pipe and other main parts.
It is a new product that connects pumps,valves and other equipment with pipelines.It connects them into a whole through full bolts,and has a certain displacement. In this way, it can be adjusted according to the installation size on site during installation and maintenance, and the axial thrust can be transferred back to the whole pipeline during work.This not only
improves work efficiency,but also plays a certain protective role for pumps,valves and other equipment.
Steel Joint Advantages:
1.Quick consulation service
2.Most reasonable price
3.High quality product
4.Strict quality control and inspection
5.Careful packing and transportation
6.100% quality warranty
Steel Joint Technical Parameters:
| DN |
Pipe
diameler |
Ofne
dimenson |
Flange connertion dimensions |
| 0.6Mpa |
1.0Mpa |
| |
DW |
L |
L1 |
D |
D1 |
n-Tn |
b |
D |
D1 |
n-Tn |
b |
| 65 |
76 |
200 |
40 |
160 |
130 |
4-M12 |
16 |
185 |
145 |
4-M16 |
20 |
| 80 |
89 |
190 |
150 |
4-M16 |
18 |
200 |
160 |
8-M16 |
22 |
| 100 |
114 |
210 |
170 |
4-M16 |
18 |
220 |
180 |
8-M16 |
24 |
| 125 |
140 |
240 |
200 |
8-M16 |
20 |
250 |
210 |
8-M16 |
26 |
| 150 |
168 |
265 |
225 |
8-M16 |
20 |
285 |
240 |
8-M20 |
26 |
| 200 |
219 |
320 |
280 |
8-M16 |
22 |
340 |
295 |
8-M20 |
28 |
| 250 |
273 |
375 |
335 |
12-M16 |
24 |
395 |
350 |
12-M20 |
28 |
| 300 |
325 |
220 |
50 |
440 |
395 |
12-M20 |
24 |
445 |
400 |
12-M20 |
28 |
| 350 |
377 |
490 |
445 |
20-M20 |
26 |
505 |
460 |
16-M20 |
30 |
| 400 |
426 |
540 |
495 |
20-M20 |
28 |
565 |
515 |
16-M24 |
32 |
| 450 |
480 |
595 |
550 |
20-M20 |
28 |
615 |
565 |
20-M24 |
32 |
| 530 |
530 |
645 |
600 |
20-M20 |
30 |
670 |
620 |
20-M24 |
34 |
| 600 |
630 |
240 |
755 |
705 |
20-M24 |
30 |
780 |
725 |
20-M27 |
36 |
| 700 |
720 |
860 |
810 |
24-M24 |
32 |
895 |
840 |
24-M27 |
40 |
| 800 |
820 |
350 |
60 |
975 |
920 |
24-M27 |
34 |
1015 |
950 |
24-M30 |
44 |
| 900 |
920 |
1075 |
1020 |
24-M27 |
36 |
1115 |
1050 |
28-M30 |
46 |
| 1000 |
1020 |
1175 |
1120 |
28-M27 |
36 |
1230 |
1160 |
28-M30 |
50 |
| 1200 |
1220 |
370 |
1405 |
1340 |
32-M30 |
40 |
1455 |
1380 |
28-M33 |
56 |
| 1400 |
1420 |
1630 |
1560 |
36-M33 |
44 |
1675 |
1590 |
32-M36 |
62 |
| 1600 |
1620 |
380 |
1830 |
1760 |
40-M33 |
48 |
1915 |
1820 |
36-M39 |
68 |
| 1800 |
1820 |
2045 |
1970 |
44-M36 |
50 |
2115 |
2020 |
40-M45 |
70 |
| 2000 |
2020 |
400 |
2265 |
2180 |
48-M39 |
54 |
2325 |
2230 |
48-M45 |
74 |
| 2200 |
2220 |
2475 |
2390 |
52-M39 |
60 |
2550 |
2440 |
52-M52 |
80 |
| 2400 |
2420 |
2685 |
2600 |
56-M39 |
62 |
2760 |
2650 |
56-M52 |
82 |
| 2600 |
2620 |
450 |
80 |
2905 |
2810 |
60-M45 |
64 |
2960 |
2850 |
60-M52 |
88 |
| 2800 |
2820 |
3115 |
3020 |
64 -M45 |
68 |
3180 |
3070 |
64 -M52 |
94 |
| 3000 |
3020 |
3315 |
3220 |
68-M45 |
70 |
3405 |
3290 |
68-M56 |
100 |
| 3200 |
3220 |
3525 |
3430 |
72-M45 |
76 |
|
|
|
|
Application:
Application of dismantling joint price
It's mainly used for the loose sleeve connection of pump, valve and other pipeline accessories etc.
Support and Services:
Excellent Quality: We always prioritize product quality, adopting advanced production processes and strict quality control systems to ensure that every product meets or exceeds industry standards and customer expectations. Our products are carefully designed to balance functionality and durability, meeting the needs of different fields and scenarios.
Professional Consultation: We have a professional team that is always ready to provide technical consultation and product selection suggestions to our clients. Whether it's your first encounter or in-depth understanding, we can provide you with the most accurate and comprehensive information.
In short, the high-quality products, professional support, and services we provide are a reflection of our commitment to our customers. We will continuously strive to improve product quality and service level, creating greater value for our customers.
FAQ:
Q:Are you trading company or manufacturer?
A: We are professional manufacturer.
Q:When the products will be shipped ?
A:Within 7~25 days after receiving the prepayment.
Q: Can you make the product as per client's requirement?
A: Yes, We can customize according to customer requirements, and we have a professional technical team to draw drawings.
Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be returned or according to consumer's requests.
Q: Do you accept small quantity order?
A: Of course we do.
Q: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement
Q: Can I visit your factory before the order?
A: Yes, welcome to our factory to check the quality.
